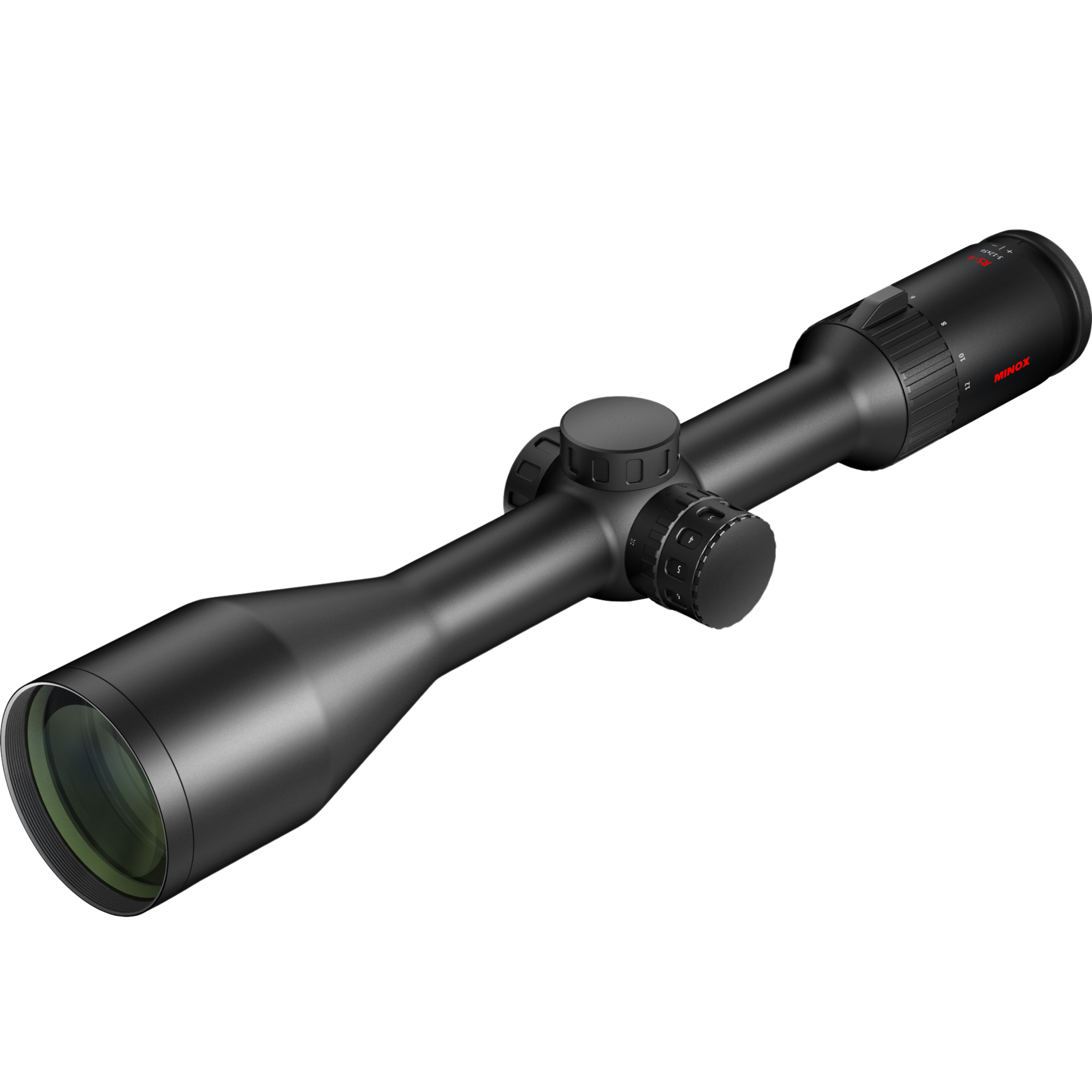

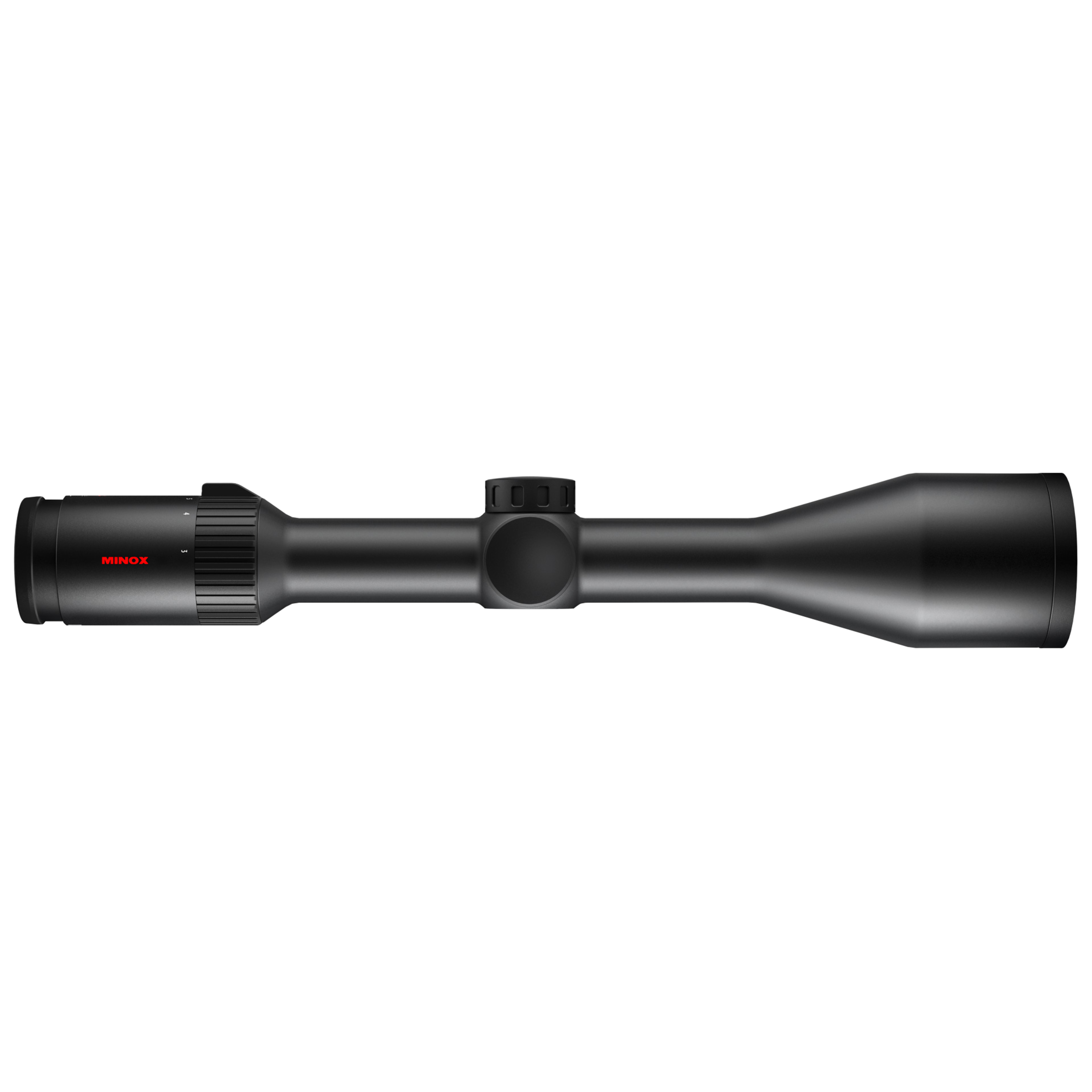

MINOX RS-4 3-12x56
The riflescope for long distances and low light
- Available with bullet drop compensation (BDC)
- Up to 12x zoom
- Large field of view
€850.00
Prices incl. VAT plus shipping costs Learn more
Ready to ship in 3-5 workdays
Sighting in the high seat - when the last minutes are crucial
Dusk is falling. You've been waiting for three hours. 1.5 square metres of peace and patience. Full control, clear field of view and the wind in your face. A big buck slowly moves into the open field. A focussed look through the scope. The image is bright and sharp. The impressive antlers are clearly recognisable. You take your aim - your finger on the trigger.
Bullet drop compensation - simply adjust instead of guessing
The RS-4 3-12x56 is optionally available with a BDC (Bullet Drop Compensator) turret. Thanks to this quick reticle adjustment, the riflescope can be quickly and safely adjusted to all distances. No guessing, no risk. Check your reading, turn, lock - done.
56 mm objective lens diameter - ideal for low light conditions
12x magnification - your reliable companion from field to mountain hunting!
Parallax compensation – In focus from 10 metres

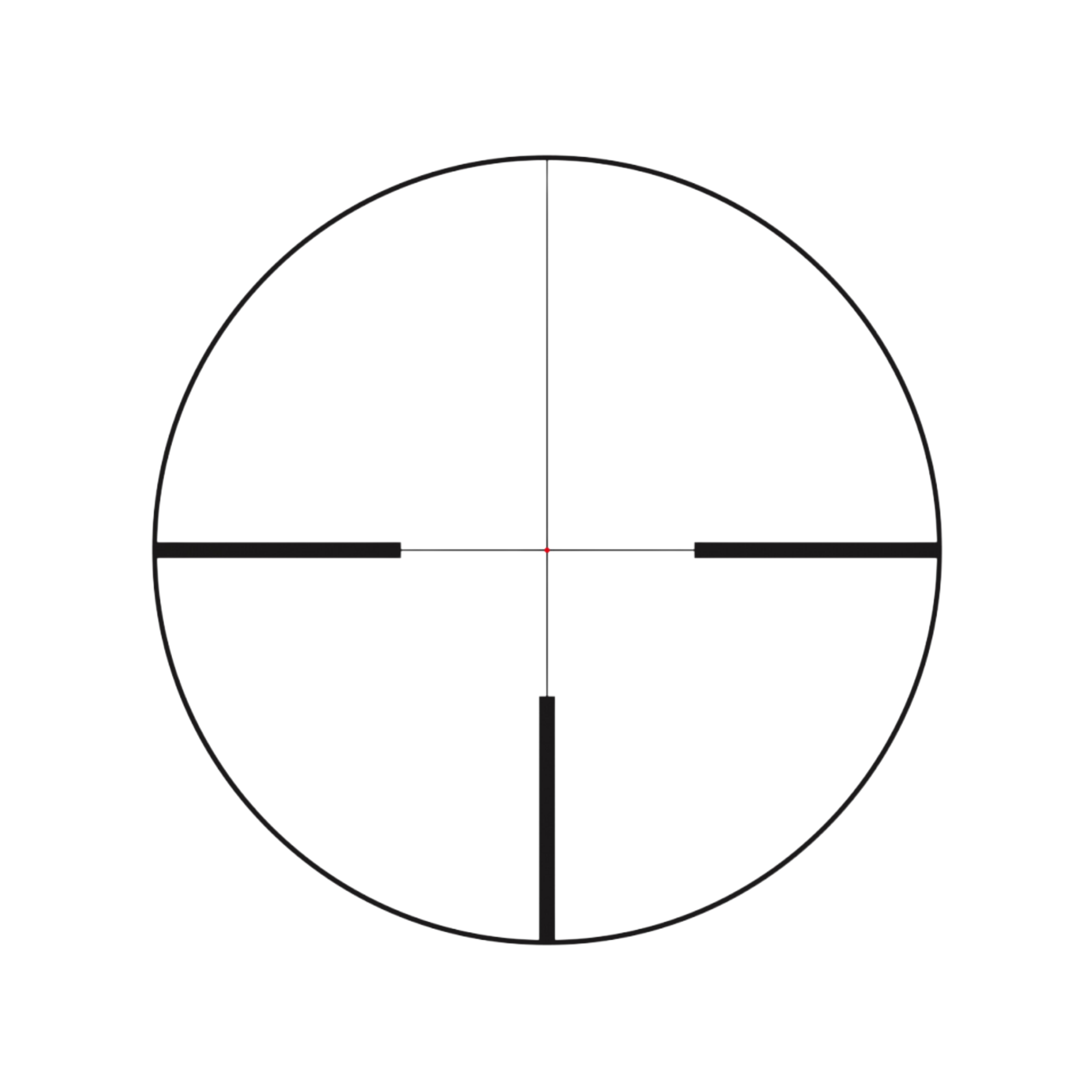

Illuminated dot - powerful in any situation
Everything a riflescope needs for sitting in a high seat
The RS-4 3-12x56 is a powerful riflescope that has been optimised by MINOX for classic hunting. In the standard version the illuminated red dot and the extra-large objective lens diameter make it a specialist in low light conditions. As an option, the BDC turret supports fast range calculation and adjustment of the reticle. With its high magnification and parallax compensation, you can master all challenges at any distance.
TEST ON SITE - THE NEAREST MINOX DEALER
Nothing beats a real-life test. The best way to find out how convincing our riflescopes actually are is to visit a MINOX dealer. Simply bring your own rifle, mount the scope and test it! These shops stock MINOX:
Technical Data
RS 4 Model 1-4x24 2.5-10x50 2.5-10x42 3-12x56 Magnification 1 - 4 x 2.5 - 10 x 2.5 - 10 x 3 - 12 x Lens diameter (mm) 24 50 42 56 Diameter of exit pupil (mm) 10.0 - 6.0 10.0 - 5.0 10.0 - 4.2 10.0 - 4.6 Visual field in m at 100 m 40.0 - 10.0 16.0 - 4.0 16.0 - 4.0 13.3 - 3.3 Distance to exit pupil (mm) 90 90 90 90 Dioptre adjustment -3 / +2 -3 / +2 -3 / +2 -3 / +2 Elevation and lateral adjustment (per click) 1 cm / 100 m 1 cm / 100 m 1 cm / 100 m 1 cm / 100 m Reticle adjustment range (elevation / lateral) ±200 cm / 100 m ±200 cm / 100 m ±200 cm / 100 m ±200 cm / 100 m Parallax adjustment 100 m fix 10 m up to ∞ 10 m up to ∞ 10 m up to ∞ Illuminated reticle Yes, fibre optics Yes, fibre optics Yes, fibre optics Yes, fibre optics Focus plane 2 2 2 2 Power supply for the illuminated reticle CR 2032 CR 2032 CR 2032 CR 2032 Nitrogen filling Ja Ja Ja Ja Anti-fog and watertight Yes, 4 m for 30 min Yes, 4 m for 30 min Yes, 4 m for 30 min Yes, 4 m for 30 min Central tube diameter (mm) 30 30 30 30 Length (mm) 274 344 295 365 Weight (g) 470 660 635 745 Order no. 80413876 ( #4) I 80414732 (#54) 80413878 80413879 80413880 Dimensions

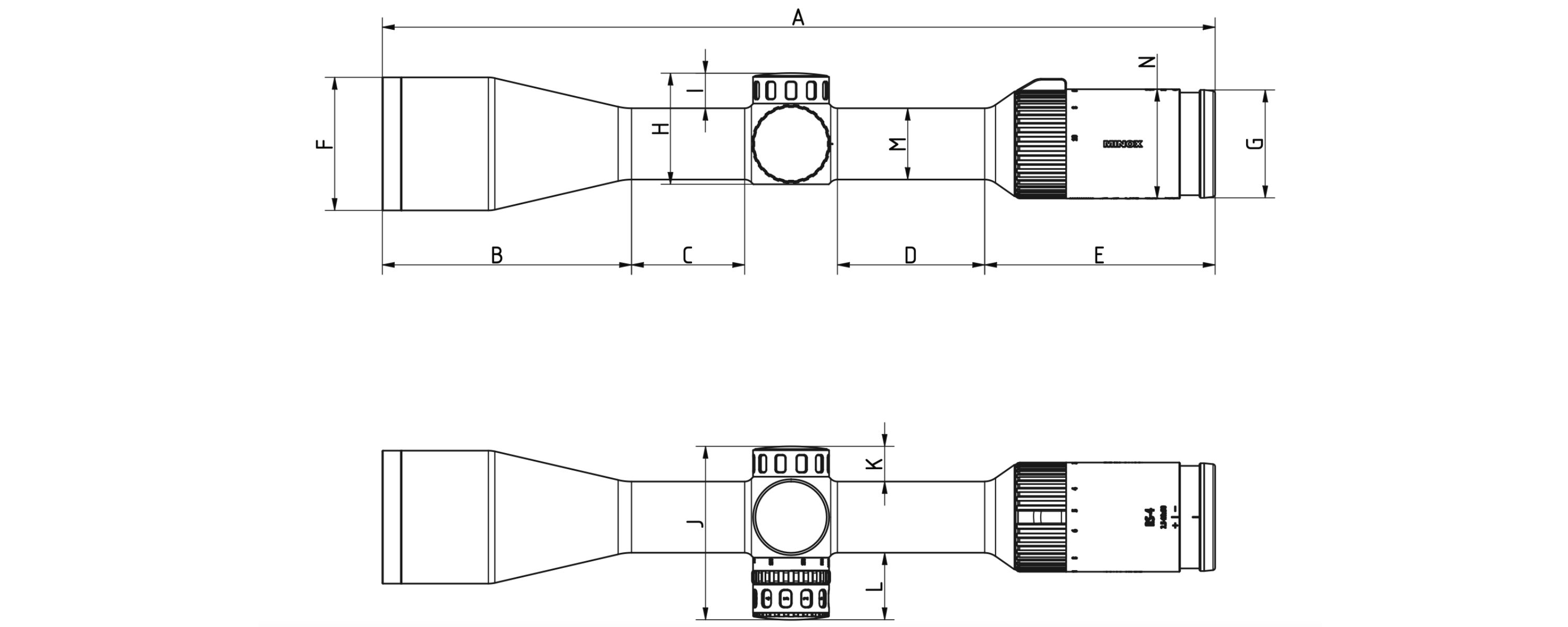

A B C D E F G H I J K L M N 1-4x24 274 122 - 54.5 96.8 30.0 45.4 46.8 14.8 61.8 14.8 17.0 30.0 46.0 2.5-10x50 344 104.9 47.6 62.0 97.0 56.0 45.4 46.8 14.8 73.1 14.8 28.3 30.0 46.0 2.5-10x42 295 61.5 37.0 62.0 97.0 48.0 45.4 46.8 14.8 73.1 14.8 28.3 30.0 46.0 3-12x56 365 110.9 57.5 62.0 97.0 62.0 45.4 46.8 14.8 73.1 14.8 28.3 30.0 46.0 Downloads
